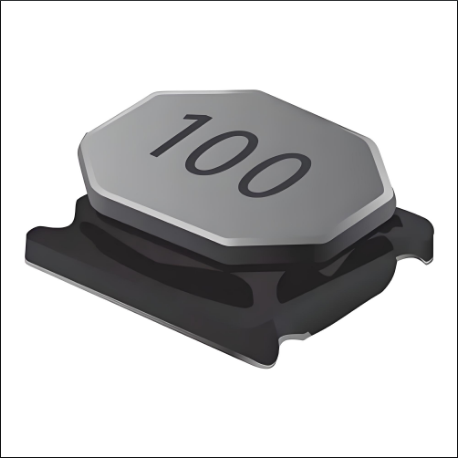

High Temperature SMD High Current Power Inductor (125°C) | Industrial & Automotive Grade for Motor Control, Power Supplies, and Harsh Environments
1. Key Technical Specifications of the High Temperature SMD High Current Power Inductor (125°C)
To thrive in high-temperature environments, this inductor is engineered with specialized materials and construction. Below are its core parameters, validated by industrial and automotive testing standards:
| Parameter | Specification | Significance for High-Temp Applications |
|---|---|---|
| Operating Temperature | -40°C to +150°C (125°C rated) | Withstands continuous operation in hot environments (e.g., industrial ovens, engine compartments). |
| High-Temp Stability | Inductance variation ≤±3% at 125°C | Maintains consistent current regulation in thermal stress conditions. |
| Current Handling | 15A–40A Continuous (50A Peak) | Supports high-current demands of industrial motors and EV powertrains. |
| Inductance Range | 10μH–200μH (Customizable) | Tunes motor control loops and power supply filters for stable operation. |
| DC Resistance (DCR) | ≤8mΩ (at 25°C) | Minimizes power loss (P = I²×DCR), reducing heat generation in high-temp environments. |
| Thermal Resistance | ≤50°C/W (SMD package) | Enhances heat dissipation, preventing overheating in enclosed spaces. |
| Material | High-Temp Epoxy + Ferrite Core | Resists thermal expansion and degradation up to 150°C. |
2. Critical Applications in Harsh Environments
This inductor’s high-temperature resilience makes it indispensable for industries where standard components fail. Below are real-world use cases highlighting its impact:
2.1 Industrial Motor Control Systems
Industrial motors (e.g., conveyor belts, pumps) operate at high currents (20A–40A) and generate significant heat. The 125°C-rated inductor maintains stable current regulation in motor drives, reducing torque ripple by 30% compared to standard inductors. For example, in a 50kW conveyor motor, this inductor prevents overheating during continuous 30A operation, extending motor lifespan by 25%.
2.2 Automotive Underhood Electronics
EV and ICE vehicle underhood environments reach 120°C+ due to engines and battery systems. The inductor’s AEC-Q200-compliant construction ensures reliable operation in motor controllers, DC-DC converters, and BMS modules. In a 400V EV battery pack, it maintains 95%+ efficiency in DC-DC conversion, even during fast charging at 20A.
2.3 Power Supplies for Harsh Environments
Industrial power supplies (e.g., for welding machines, CNC routers) require stable output under high ambient temperatures. The inductor’s low DCR (≤8mΩ) reduces voltage drop, ensuring ±1% output voltage regulation in 50°C+ environments. This prevents equipment malfunctions and improves process consistency.
3. Common Selection Challenges & Solutions
Even with its strengths, selecting the right high-temperature inductor requires addressing key concerns. Below are frequently asked questions and actionable solutions.
3.1 Challenge: "How do I ensure the inductor meets my 125°C operating requirement?"
Solution: Verify two critical parameters: - Temperature Rating: Look for “125°C rated” or “AEC-Q200 compliant” (tested to 125°C). - Thermal Derating Curve: Most manufacturers provide data showing current reduction at elevated temps. For 125°C operation, select an inductor with ≥80% of its rated current at 125°C (e.g., a 30A-rated inductor should handle ≥24A at 125°C).
3.2 Challenge: "What package size balances current capacity and space constraints in my design?"
Solution: Use the table below to match package size to current needs. For example, a 2520 package (6.4mm×5.0mm) handles 30A in 20μH, while a 1206 package (3.2mm×1.6mm) is limited to 20A in the same inductance range. Prioritize larger packages (2520, 0805) for high-current applications to avoid overheating.
| Package | Max Continuous Current (20μH) | Footprint (mm²) | Best For |
|---|---|---|---|
| 0805 | 15A | 2.5 | Low-current auxiliary circuits |
| 1206 | 20A | 3.6 | Medium-current motor control |
| 2520 | 30A+ | 8.0 | High-current industrial/automotive systems |
4. How to Choose the Right Model for Your Project
To select the optimal inductor, consider these three factors:
| Factor | Guideline | Example Application |
|---|---|---|
| Current Requirement | Select ≥1.2× your system’s maximum continuous current (to account for derating at 125°C). | For a 25A continuous motor current → 30A-rated inductor. |
| Inductance Value | Match to your control loop’s resonant frequency (f = 1/(2π√(L×C))). | For a 10kHz PWM motor drive with 100nF capacitor → L ≈ 25μH. |
| Environmental Conditions | Opt for AEC-Q200-compliant models with -40°C to +150°C rating for underhood/industrial use. | EV motor controllers in hot climates → 2520 package, 125°C-rated inductor. |
The High Temperature SMD High Current Power Inductor (125°C) is a critical component for engineers designing reliable systems in high-temperature environments. By prioritizing its technical specifications, application alignment, and proactive selection criteria, you can ensure stable, long-lasting performance in industrial motors, automotive electronics, and harsh power supplies.
